SEALED AUTOMOTIVE CONNECTOR · LOW VOLTAGE CATEGORY
Sealed automotive connector for vehicle wiring

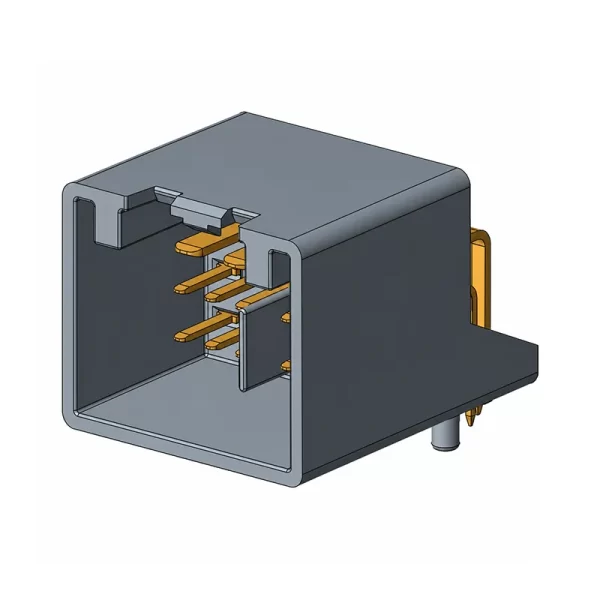

2BK01-161228W-A is a supplier-listed sealed male automotive connector for a stated motorbike harness for Brand Cars function. The published record identifies PBT+GF35&H65 material, gray color and a supplier-stated operating temperature of -40℃ to 120℃. Request the model-specific drawing, mating details and quote using 2BK01-161228W-A.
APPLICATION REVIEW
Choosing sealed automotive connectors
The source record gives a motorbike harness for Brand Cars function, but does not publish a vehicle-program qualification, mating set or electrical rating. Use the following automotive electrical connector checkpoints before approval.
Vehicle wiring review
Evaluate this sealed electrical connector against the intended motorbike or vehicle harness and confirm the exact counterpart.
Mating interface review
Request the current drawing and confirm terminal or connector-pin arrangement, lock interface and mating connector before design release.
Environment and ratings
Confirm whether the supplier-stated temperature range covers the assembly; current, voltage, IP and test method are not published.
PUBLISHED MODEL DATA
Automotive connector specifications
Values below reproduce the target record for 2BK01-161228W-A. Certification and commercial fields are supplier-stated and require order-specific confirmation.
| Product name | Auto Connector |
|---|---|
| Part number | 2BK01-161228W-A |
| Material | PBT+GF35&H65 |
| Gender | Male |
| Sealing | Sealed |
| Color | Gray |
| Operating temperature | -40℃~120℃ supplier-stated |
| Stated function | Motorbike harness for Brand Cars |
| Dimensions | Drawing can be requested by email; dimensions are not published in the source record. |
| Certification references | Source record lists ISO9001, TS16949, RoHS, 3C, SGS, UL, REACH and separately TUV, IATF16949, ISO14001 system and RoHS. Confirm the applicable certificate, scope and validity. |
SUPPLIER CONTEXT
Automotive connector manufacturing at Shenji
The About page describes Wenzhou Shenji as founded in 2010 and combining development, processing, manufacturing, sales and service. This is company-level supplier information and does not replace model-specific certification or test evidence.
TECHNICAL RESOURCES
Automotive connector drawings and mating
No model-specific downloadable drawing or certificate file is published in the target record. Request the current revision and applicable documents from Shenji before approval.
FREQUENTLY ASKED QUESTIONS
Sealed connector selection and wiring FAQs
What type of automotive connector is 2BK01-161228W-A?
The supplier lists 2BK01-161228W-A as a sealed male automotive connector in gray, with the stated function “Motorbike harness for Brand Cars.” Confirm the intended harness and mating part before selection.
Is this sealed automotive connector waterproof?
The source record lists the connector as sealed, but does not publish an IP rating or waterproof test result. Request the applicable test evidence and confirm whether protection applies to the fully mated assembly before specifying it for water exposure.
How do I identify the correct mating connector?
Request the current drawing for 2BK01-161228W-A and compare the housing interface, locking arrangement and terminal layout with the intended counterpart. The mating part number and pin count are not published; ask Shenji to confirm the complete mating set.
How should this sealed electrical connector be connected?
Request the approved terminal, wire-size and crimp specifications for the intended vehicle wiring, together with the supplier’s assembly instructions. These details are not published in the product record, so confirm them before assembling or releasing the harness.
Will this automotive connector fit my vehicle?
The stated function is “Motorbike harness for Brand Cars,” but no vehicle-program qualification or mating part number is published. Send the harness reference, counterpart and application environment to Shenji to confirm compatibility.
What material and operating temperature are listed?
The supplier lists PBT+GF35&H65 and an operating temperature of -40℃ to 120℃. Confirm the test basis and operating conditions for your assembly; this does not establish a current, voltage or IP rating.
What information is needed for a drawing and quote?
Provide the model 2BK01-161228W-A, expected quantity, mating reference, electrical requirements and application environment. Request the current drawing and applicable certification scope, then confirm packaging and delivery terms with Shenji.
PROJECT ENQUIRY
Request an automotive connector quote
Send the exact model and project inputs so Shenji can confirm unpublished specifications, document revisions and purchasing terms.
- Exact model and expected quantity
- Application and mating reference
- Wire, terminal and environment requirements
- Destination market and required documents
