Unsealed automotive connector for vehicle wiring

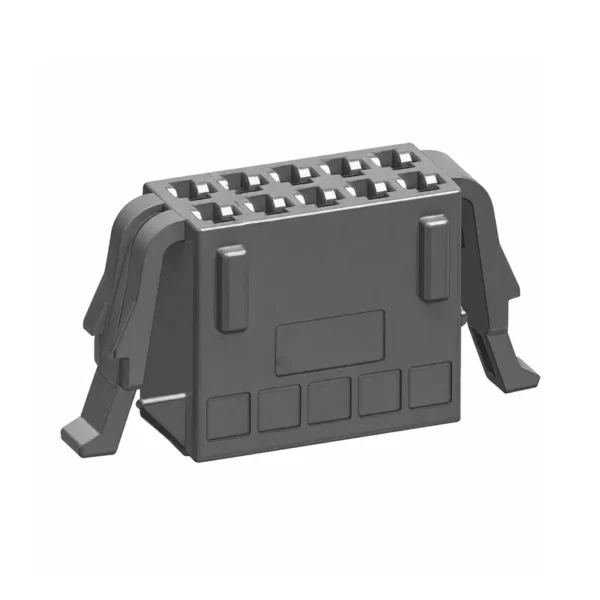

1-929623-1 is a supplier-listed unsealed automotive connector with a female configuration. The material designation is PBT.
Use the exact part number to request the drawing and check the intended mating connection before harness selection.
Automotive connector specifications and materials
Supplier-published specifications for 1-929623-1. Confirm operating conditions for the complete assembly.
| Part number | 1-929623-1 |
|---|---|
| Material | PBT |
| Gender | Female |
| Sealing | Unsealed |
| Color | Black |
| Operating temperature | -40℃~120℃ |
| Stated application | Motorbike harness for Brand Cars |
| Dimensions | Drawings can be requested by email |
Choosing an unsealed automotive connector
Matching automotive connector pins
For 1-929623-1, confirm contact positions, terminal layout, housing geometry and locking details against the intended counterpart. The table does not provide pin count, electrical ratings or a mating part number.
Protecting unsealed vehicle connections
Confirm installation protection for the unsealed connection and the planned harness route.
Automotive connector drawings and mating details
Request the model drawing, terminal specification and assembly instructions. Check supplier background or compare other records without assuming interchangeability.
Unsealed connector selection and wiring FAQs
What type of automotive connector is 1-929623-1?
The supplier lists 1-929623-1 as an Unsealed auto connector. Confirm the intended counterpart and installation environment; the category name does not establish vehicle interchangeability.
What protection does an unsealed automotive connector need?
The supplier table identifies this model as Unsealed and does not establish a waterproof rating. Confirm the enclosure or installation protection required before exposure to water, dust or service fluids.
How do I identify the correct mating connector for 1-929623-1?
Use the full part-number entry 1-929623-1 to request the counterpart drawing. Confirm terminal positions, keying, housing geometry and locking details. The table does not publish a mating part number, so appearance or color alone does not establish compatibility.
Which wires and terminals should I use with this connector?
The table does not publish a supported wire range or terminal assembly procedure. Confirm conductor size, insulation diameter, terminal geometry and the installation protection needed for the harness.
What current and voltage ratings are published?
The parameter table does not publish rated current, rated voltage or a derating curve. Confirm circuit load, wire size, contact population and temperature-rise limits for the complete mating assembly before assigning an electrical rating.
Which materials and operating temperatures are listed?
The supplier lists PBT and an operating range of -40℃~120℃. Confirm the component breakdown and complete-assembly test conditions; these entries do not establish an electrical-load rating.
Where can this unsealed connector be installed?
The supplier identifies this model as Unsealed. Confirm the enclosure, harness routing and protection from dust, water and service fluids for the actual installation.
Can this automotive connector be repinned instead of replaced?
A model-specific extraction or repinning procedure is not published in the table. Request approved service instructions, extraction tooling and replacement criteria. Confirm whether terminals, seals and retention parts may be reused before attempting a repair.
Request an automotive connector quote
For 1-929623-1, send quantity, counterpart, application environment and required documents. Confirm sample availability, packaging, payment terms and delivery date with Shenji.
- Exact model and expected quantity
- Application and mating reference
- Required documents and destination market
- Packaging and delivery confirmation
