Unsealed automotive connector for vehicle wiring

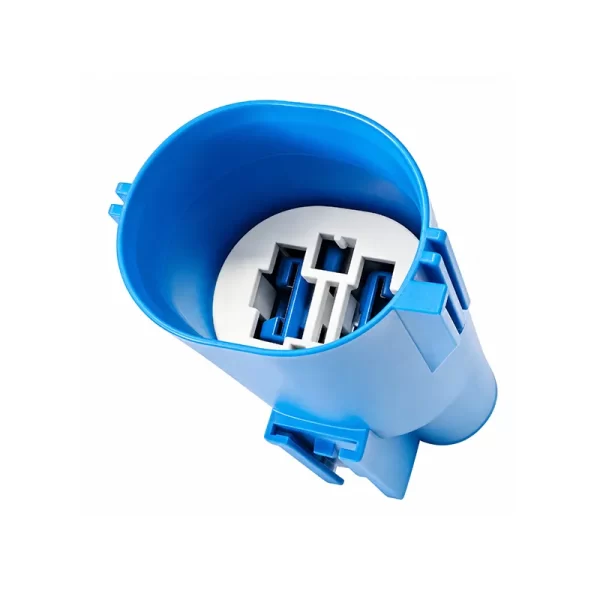

1BU01-04159511 is listed by Shenji as a supplier-designated unsealed automotive connector with a male configuration.
For an automotive electrical connector enquiry, use the exact part number when requesting a drawing or comparing a mating connection. The published material field is PBT+GF15; confirm the complete parts list and assembly conditions before selection.
Automotive connector specifications and materials
The following values are supplier-published fields for 1BU01-04159511. Confirm operating conditions for the complete assembly.
| Part number | 1BU01-04159511 |
|---|---|
| Material | PBT+GF15 |
| Gender | Male |
| Sealing | Unsealed |
| Color (source wording) | Bule |
| Operating temperature | -40℃~120℃ |
| Stated function | Motorbike harness for Brand Cars |
| Dimensions | Drawings can be requested by email |
The source spells the color 'Bule'. Confirm the color code against the drawing and sample.
Choosing an unsealed automotive connector
Automotive connector pins: mating checks
For 1BU01-04159511, request housing geometry, terminal layout, lock details and the approved counterpart. Confirm pin count, contact positions, wire size and electrical ratings against the mating drawing.
Shielding review
Confirm whether the complete assembly provides the required shield and grounding path.
Automotive connector drawings and mating details
Request the model drawing, terminal specification and assembly instructions before design release. Use the company profile for supplier background, and the product hub for other models; these links do not establish interchangeability.
Unsealed connector selection and wiring FAQs
What type of automotive connector is 1BU01-04159511?
The source designates 1BU01-04159511 as unsealed and lists the function as 'Motorbike harness for Brand Cars'. Confirm the intended harness and counterpart rather than treating this wording as a vehicle-fit approval.
Is this connector suitable for water exposure?
The record labels this connector Unsealed. Request confirmation of any external enclosure or installation protection; a waterproof rating is not established by this parameter table.
Is shielding performance specified?
The earlier source title mentions shielding, but the parameter table does not describe a shield, grounding path or shielding-effectiveness test. Request the complete assembly drawing and electrical test evidence before specifying shielding.
How do I identify the mating connector?
Send the model 1BU01-04159511 and counterpart reference to Shenji. Request the mating drawing and check housing shape, terminal positions, polarization and locking details; a mating part number is not published.
What should be checked before connecting the wiring?
Request the approved terminal, wire-size and crimp specifications, assembly sequence and current or voltage limits. These details are not published in the product table; do not use material or temperature alone as an electrical rating.
What material and temperature are listed?
The supplier lists PBT+GF15 and an operating temperature of -40℃~120℃. Confirm the material breakdown and test conditions for the assembled connector.
What finish or color information is available?
The source color field says Bule. Confirm the housing color code and identification against the current drawing.
Request an automotive connector quote
For a quote on 1BU01-04159511, provide quantity, counterpart, application environment, destination and required documents. Confirm sample availability, packaging, payment terms and delivery date with Shenji.
- Exact model and expected quantity
- Application and mating reference
- Required documents and destination market
- Packaging and delivery confirmation
