Unsealed automotive connector for vehicle wiring

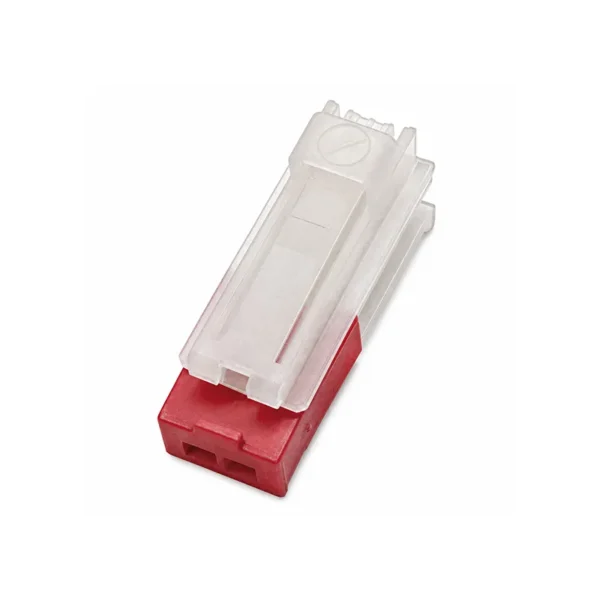

1WH22-020721 is a supplier-listed unsealed automotive connector with a female configuration. The material designation is PA46+GF30.
Use the exact part number to request the drawing and check the intended mating connection before harness selection.
Automotive connector specifications and materials
Supplier-published specifications for 1WH22-020721. Confirm operating conditions for the complete assembly.
| Part number | 1WH22-020721 |
|---|---|
| Material | PA46+GF30 |
| Gender | Female |
| Sealing | Unsealed |
| Color | White |
| Operating temperature | -40℃~120℃ |
| Stated application | Motorbike harness for Brand Cars |
| Dimensions | Drawings can be requested by email |
Choosing an unsealed automotive connector
Matching automotive connector pins
For 1WH22-020721, confirm contact positions, terminal layout, housing geometry and locking details against the intended counterpart. The table does not provide pin count, electrical ratings or a mating part number.
Choosing the right material grade
Confirm the listed material grade and component breakdown against the intended operating conditions.
Automotive connector drawings and mating details
Request the model drawing, terminal specification and assembly instructions. Check supplier background or compare other records without assuming interchangeability.
Unsealed connector selection and wiring FAQs
What type of automotive connector is 1WH22-020721?
The supplier identifies 1WH22-020721 as an auto connector for vehicle-harness enquiries. Confirm the exact counterpart and installation rather than assuming compatibility with a vehicle from the category name.
What protection does an unsealed connector need?
The supplier table lists Unsealed. Confirm installation protection before exposure to water or dust; do not infer a waterproof rating from this record.
What should I confirm about the material grade?
The supplier lists PA46+GF30 as the material designation. Confirm the component breakdown, material grade and intended operating conditions; the designation alone does not establish assembly performance.
How do I find the correct mating connector?
Request the counterpart drawing for 1WH22-020721 and compare housing shape, terminal positions, polarization and locking details. A counterpart part number is not published in the parameter table.
What should I confirm before wiring the connector?
Confirm terminal selection, wire size, electrical ratings and assembly instructions for the mating set. The table does not establish connection method or current capacity.
Which materials and operating temperatures are listed?
The supplier lists PA46+GF30 and an operating range of -40℃~120℃. Confirm the material breakdown and assembly test conditions.
What color or plating is specified?
The supplier color field says White. Confirm the color code and identification against the drawing and sample.
Request an automotive connector quote
For 1WH22-020721, send quantity, counterpart, application environment and required documents. Confirm sample availability, packaging, payment terms and delivery date with Shenji.
- Exact model and expected quantity
- Application and mating reference
- Required documents and destination market
- Packaging and delivery confirmation
