Unsealed automotive connector for vehicle wiring

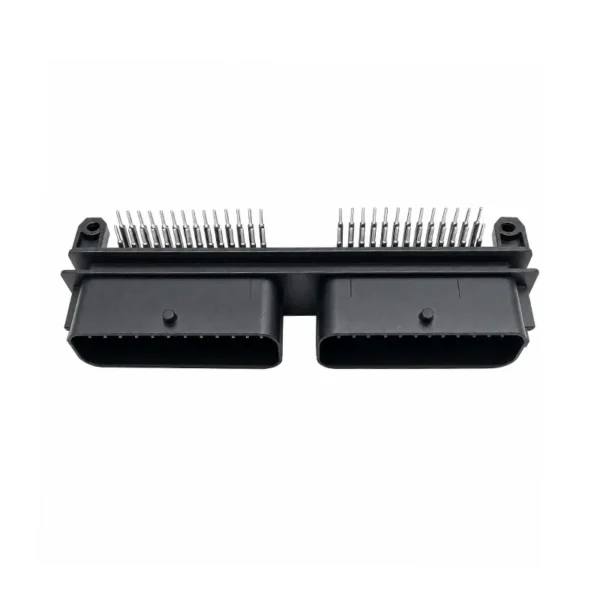

2BK01-5615W is listed by Shenji as a supplier-designated unsealed automotive connector with a female configuration.
For an automotive electrical connector enquiry, use the exact part number when requesting a drawing or comparing a mating connection. The published material field is PBT+GF30; confirm the complete parts list and assembly conditions before selection.
Automotive connector specifications and materials
The following values are supplier-published fields for 2BK01-5615W. Confirm operating conditions for the complete assembly.
| Part number | 2BK01-5615W |
|---|---|
| Material | PBT+GF30 |
| Gender | Female |
| Sealing | Unsealed |
| Color (source wording) | Black |
| Operating temperature | -40℃~120℃ |
| Stated function | Motorbike harness for Brand Cars |
| Dimensions | Drawings can be requested by email |
Choosing an unsealed automotive connector
Automotive connector pins: mating checks
For 2BK01-5615W, request housing geometry, terminal layout, lock details and the approved counterpart. Confirm pin count, contact positions, wire size and electrical ratings against the mating drawing.
Outdoor exposure
Confirm UV, moisture and installation protection requirements for outdoor use.
Automotive connector drawings and mating details
Request the model drawing, terminal specification and assembly instructions before design release. Use the company profile for supplier background, and the product hub for other models; these links do not establish interchangeability.
Unsealed connector selection and wiring FAQs
What type of automotive connector is 2BK01-5615W?
The source designates 2BK01-5615W as unsealed and lists the function as 'Motorbike harness for Brand Cars'. Confirm the intended harness and counterpart rather than treating this wording as a vehicle-fit approval.
Is this connector suitable for water exposure?
The record labels this connector Unsealed. Request confirmation of any external enclosure or installation protection; a waterproof rating is not established by this parameter table.
Can I specify this connector for outdoor exposure?
The earlier source title mentions UV resistance, but the parameter table does not publish a weathering test or exposure limit. Confirm UV, moisture and installation protection against the intended environment.
How do I identify the mating connector?
Send the model 2BK01-5615W and counterpart reference to Shenji. Request the mating drawing and check housing shape, terminal positions, polarization and locking details; a mating part number is not published.
What should be checked before connecting the wiring?
Request the approved terminal, wire-size and crimp specifications, assembly sequence and current or voltage limits. These details are not published in the product table; do not use material or temperature alone as an electrical rating.
What material and temperature are listed?
The supplier lists PBT+GF30 and an operating temperature of -40℃~120℃. Confirm the material breakdown and test conditions for the assembled connector.
What finish or color information is available?
The source color field says Black. Confirm the housing color code and identification against the current drawing.
Request an automotive connector quote
For a quote on 2BK01-5615W, provide quantity, counterpart, application environment, destination and required documents. Confirm sample availability, packaging, payment terms and delivery date with Shenji.
- Exact model and expected quantity
- Application and mating reference
- Required documents and destination market
- Packaging and delivery confirmation
