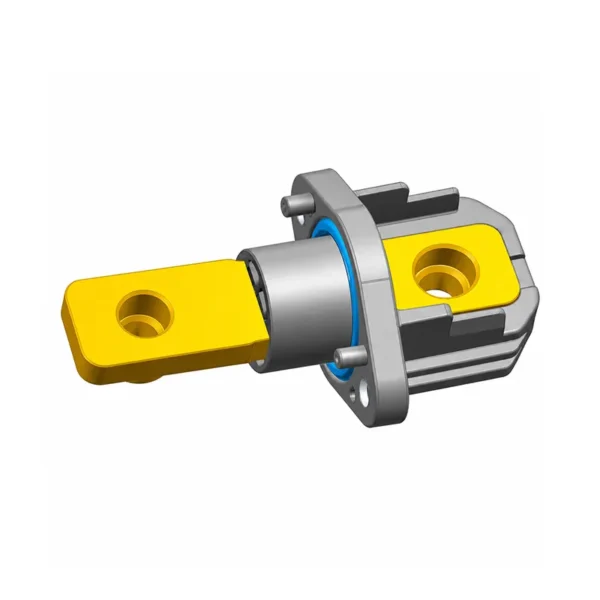

Sealed automotive connector for vehicle wiring
4BK33-0111 is a supplier-listed sealed automotive connector with a male configuration. The material designation is T2&PA66+GF25.
Use the exact part number to request the drawing and check the intended mating connection before harness selection.
Automotive connector specifications and materials
Supplier-published specifications for 4BK33-0111. Confirm operating conditions for the complete assembly.
| Part number | 4BK33-0111 |
|---|---|
| Material | T2&PA66+GF25 |
| Gender | Male |
| Sealing | Sealed |
| Color | Black |
| Operating temperature | -40℃~120℃ |
| Stated application | Motorbike harness for Brand Cars |
| Dimensions | Drawings can be requested by email |
Choosing sealed connectors for vehicle wiring
Matching automotive connector pins
For 4BK33-0111, confirm contact positions, terminal layout, housing geometry and locking details against the intended counterpart. The table does not provide pin count, electrical ratings or a mating part number.
Confirming the connector locking method
Confirm retention parts and the mating and release sequence for the connection.
Automotive connector drawings and mating details
Request the model drawing, terminal specification and assembly instructions. Check supplier background or compare other records without assuming interchangeability.
Sealed connector selection and wiring FAQs
What does sealed mean for the 4BK33-0111 automotive connector?
The supplier lists 4BK33-0111 as a Sealed auto connector. Confirm the seal design, supplied components and mating configuration against the current drawing; the table does not describe the complete sealing system.
Is 4BK33-0111 suitable for a waterproof connection?
The supplier does not publish an ingress-test rating for this model. Confirm the required water exposure, mating condition, seal components and test evidence before selection; a sealed designation alone does not verify waterproof performance.
How do I identify the correct mating connector for 4BK33-0111?
Use the full part-number entry 4BK33-0111 to request the counterpart drawing. Confirm terminal positions, keying, housing geometry and locking details. The table does not publish a mating part number, so appearance or color alone does not establish compatibility.
Which wires and seals should I use with this connector?
The table does not specify a supported wire range or seal sizes. Confirm conductor size, insulation diameter, terminal part number and seal components, then request the model-specific assembly instructions.
What current and voltage ratings are published?
The parameter table does not publish rated current, rated voltage or a derating curve. Confirm circuit load, wire size, contact population and temperature-rise limits for the complete mating assembly before assigning an electrical rating.
Which materials and operating temperatures are listed?
The supplier lists T2&PA66+GF25 and an operating range of -40℃~120℃. Confirm the component breakdown and complete-assembly test conditions; these entries do not establish an electrical-load rating.
How is the mating connection locked?
The supplier lists a male configuration and T2&PA66+GF25 but does not describe the locking mechanism. Confirm retention parts, the mating sequence and the release procedure with the drawing.
Can this automotive connector be repinned instead of replaced?
A model-specific extraction or repinning procedure is not published in the table. Request approved service instructions, extraction tooling and replacement criteria. Confirm whether terminals, seals and retention parts may be reused before attempting a repair.
Request an automotive connector quote
For 4BK33-0111, send quantity, counterpart, application environment and required documents. Confirm sample availability, packaging, payment terms and delivery date with Shenji.
- Exact model and expected quantity
- Application and mating reference
- Required documents and destination market
- Packaging and delivery confirmation
