Automotive electrical connector for vehicle wiring

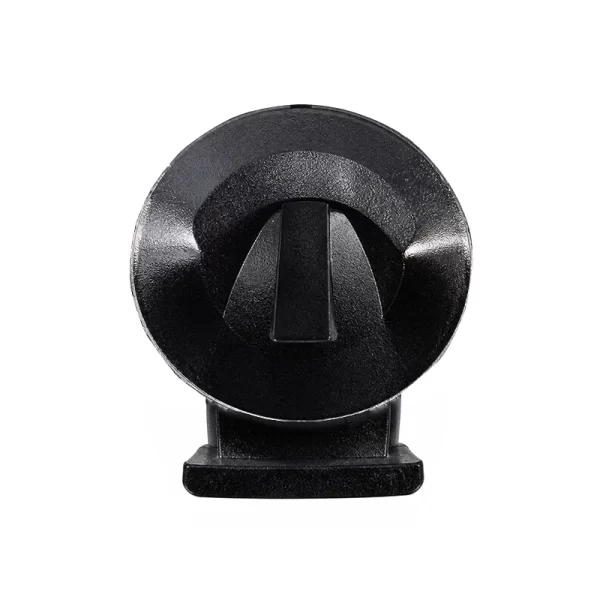

SJZ-XK-36 is a supplier-listed automotive electrical connector. The material designation is PA66.
Use the exact part number to request the drawing and check the intended mating connection before harness selection.
Automotive connector specifications and materials
Supplier-published specifications for SJZ-XK-36. Confirm operating conditions for the complete assembly.
| Part number | SJZ-XK-36 |
|---|---|
| Material | PA66 |
| Gender | Not specified; confirm |
| Sealing | Not specified; confirm |
| Color | Black |
| Operating temperature | -40℃~120℃ |
| Stated application | Motorbike harness for Brand Cars |
| Dimensions | Drawings can be requested by email |
Confirm the sealing configuration against the current drawing before selecting installation protection.
Choosing automotive electrical connectors
Matching automotive connector pins
For SJZ-XK-36, confirm contact positions, terminal layout, housing geometry and locking details against the intended counterpart. The table does not provide pin count, electrical ratings or a mating part number.
Confirming connector mounting clearance
Request the drawing and confirm mounting points and clearance around the harness.
Automotive connector drawings and mating details
Request the model drawing, terminal specification and assembly instructions. Check supplier background or compare other records without assuming interchangeability.
Automotive connector selection and wiring FAQs
What type of automotive connector is SJZ-XK-36?
The supplier identifies SJZ-XK-36 as an auto connector, but the translated sealing field does not establish a clear classification. Confirm the current drawing and exact component configuration before environmental selection.
Is this automotive connector sealed or unsealed?
The available sealing field is ambiguous, so neither a sealed classification nor a waterproof rating is established. Confirm the supplied sealing components, intended mating condition and applicable protection evidence.
How do I identify the correct mating connector for SJZ-XK-36?
Use the full part-number entry SJZ-XK-36 to request the counterpart drawing. Confirm terminal positions, keying, housing geometry and locking details. The table does not publish a mating part number, so appearance or color alone does not establish compatibility.
Which wires and terminals fit this automotive connector?
The table does not identify the supported wire range or assembly instructions. Confirm conductor size, insulation diameter, terminal part number and whether any sealing components are required for the mating set.
What current and voltage ratings are published?
The parameter table does not publish rated current, rated voltage or a derating curve. Confirm circuit load, wire size, contact population and temperature-rise limits for the complete mating assembly before assigning an electrical rating.
Which materials and operating temperatures are listed?
The supplier lists PA66 and an operating range of -40℃~120℃. Confirm the component breakdown and complete-assembly test conditions; these entries do not establish an electrical-load rating.
Where can I confirm installation clearance?
The supplier offers drawings by email but does not publish the mounting envelope. Request the drawing and confirm mounting points, clearance and the intended position relative to the harness.
Can this automotive connector be repinned instead of replaced?
A model-specific extraction or repinning procedure is not published in the table. Request approved service instructions, extraction tooling and replacement criteria. Confirm whether terminals, seals and retention parts may be reused before attempting a repair.
Request an automotive connector quote
For SJZ-XK-36, send quantity, counterpart, application environment and required documents. Confirm sample availability, packaging, payment terms and delivery date with Shenji.
- Exact model and expected quantity
- Application and mating reference
- Required documents and destination market
- Packaging and delivery confirmation
