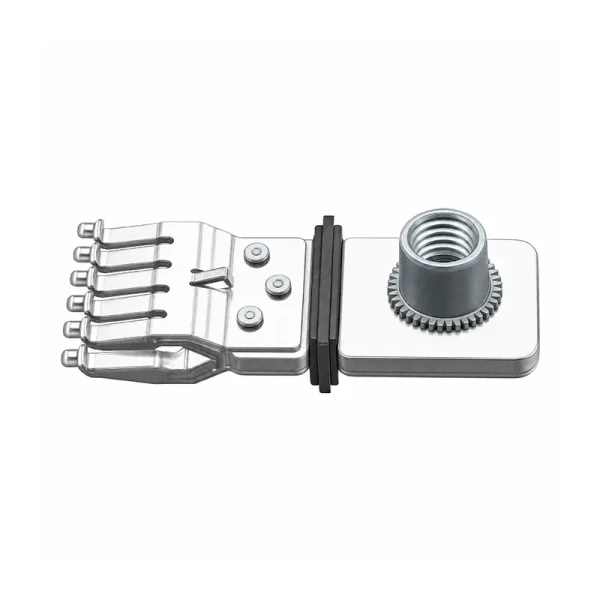

Sealed automotive connector for vehicle wiring
SJZ8211-180-M8 is a supplier-listed sealed automotive connector. The material designation is TPV&T2.
Use the exact part number to request the drawing and check the intended mating connection before harness selection.
Automotive connector specifications and materials
Supplier-published specifications for SJZ8211-180-M8. Confirm operating conditions for the complete assembly.
| Part number | SJZ8211-180-M8 |
|---|---|
| Material | TPV&T2 |
| Gender | Not specified; confirm |
| Sealing | Sealed |
| Color | Black |
| Operating temperature | -40℃~120℃ |
| Stated application | Motorbike harness for Brand Cars |
| Dimensions | Drawings can be requested by email |
Choosing sealed connectors for vehicle wiring
Matching automotive connector pins
For SJZ8211-180-M8, confirm contact positions, terminal layout, housing geometry and locking details against the intended counterpart. The table does not provide pin count, electrical ratings or a mating part number.
Checking seals for dust exposure
Confirm the dust-exposure requirement, mating condition and protection evidence.
Automotive connector drawings and mating details
Request the model drawing, terminal specification and assembly instructions. Check supplier background or compare other records without assuming interchangeability.
Sealed connector selection and wiring FAQs
What type of automotive connector is SJZ8211-180-M8?
The supplier identifies SJZ8211-180-M8 as an auto connector for vehicle-harness enquiries. Confirm the exact counterpart and installation rather than assuming compatibility with a vehicle from the category name.
Does a sealed connector have a waterproof rating?
The supplier lists Sealed, but does not publish an ingress-test rating. Confirm seal components, the mating condition and the applicable test evidence before environmental exposure.
Is this connector rated for dust protection?
The table gives a sealed designation without a dust-ingress test report. Confirm the mating condition, seal components and applicable protection test before use in a dusty installation.
How do I find the correct mating connector?
Request the counterpart drawing for SJZ8211-180-M8 and compare housing shape, terminal positions, polarization and locking details. A counterpart part number is not published in the parameter table.
What should I confirm before wiring the connector?
Confirm terminal selection, wire size, electrical ratings and assembly instructions for the mating set. The table does not establish connection method or current capacity.
Which materials and operating temperatures are listed?
The supplier lists TPV&T2 and an operating range of -40℃~120℃. Confirm the material breakdown and assembly test conditions.
What color or plating is specified?
The supplier color field says Black. Confirm the color code and identification against the drawing and sample.
Request an automotive connector quote
For SJZ8211-180-M8, send quantity, counterpart, application environment and required documents. Confirm sample availability, packaging, payment terms and delivery date with Shenji.
- Exact model and expected quantity
- Application and mating reference
- Required documents and destination market
- Packaging and delivery confirmation
