Sealed automotive connector for vehicle wiring

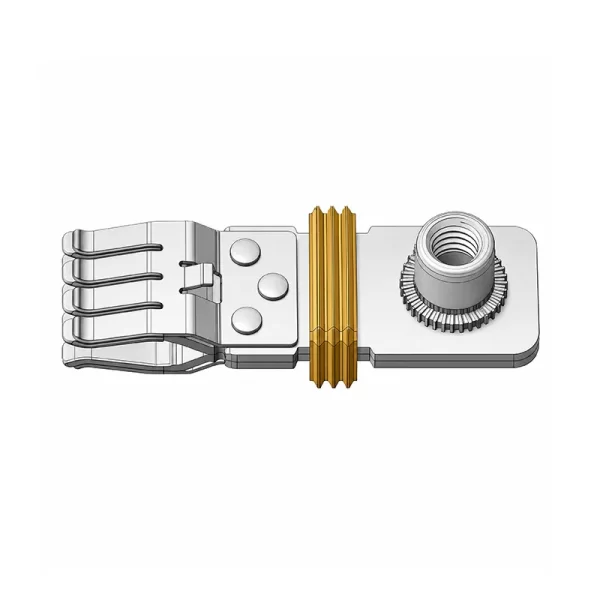

SJZ8235-180-M6 is listed by Shenji as a supplier-designated sealed automotive connector with a female configuration.
For an automotive electrical connector enquiry, use the exact part number when requesting a drawing or comparing a mating connection. The published material field is Assembly; confirm the complete parts list and assembly conditions before selection.
Automotive connector specifications and materials
The following values are supplier-published fields for SJZ8235-180-M6. Confirm operating conditions for the complete assembly.
| Part number | SJZ8235-180-M6 |
|---|---|
| Material | Assembly |
| Gender | Female |
| Sealing | Sealed |
| Plating (source designation) | Ag |
| Operating temperature | -40℃~120℃ |
| Stated function | Motorbike harness for Brand Cars |
| Dimensions | Drawings can be requested by email |
The material field says 'Assembly' rather than a material grade. Request the housing, contact and seal material breakdown.
Choosing sealed connectors for vehicle wiring
Automotive connector pins: mating checks
For SJZ8235-180-M6, request housing geometry, terminal layout, lock details and the approved counterpart. Confirm pin count, contact positions, wire size and electrical ratings against the mating drawing.
Mounting interface
Confirm mounting dimensions, required hardware and tightening instructions.
Confirm the seals, mating condition and ingress-test evidence; the word sealed does not establish a waterproof rating.
Automotive connector drawings and mating details
Request the model drawing, terminal specification and assembly instructions before design release. Use the company profile for supplier background, and the product hub for other models; these links do not establish interchangeability.
Sealed connector selection and wiring FAQs
What type of automotive connector is SJZ8235-180-M6?
The source designates SJZ8235-180-M6 as sealed and lists the function as 'Motorbike harness for Brand Cars'. Confirm the intended harness and counterpart rather than treating this wording as a vehicle-fit approval.
Is this connector suitable for water exposure?
A sealed designation is not a published ingress-test result. Request the applicable test and assembly conditions before specifying exposure to water.
What mounting information should I request?
The model suffix and earlier source title refer to a mounting interface, but the table does not give thread dimensions or tightening instructions. Request the interface drawing, hardware list and torque requirements.
How do I identify the mating connector?
Send the model SJZ8235-180-M6 and counterpart reference to Shenji. Request the mating drawing and check housing shape, terminal positions, polarization and locking details; a mating part number is not published.
What should be checked before connecting the wiring?
Request the approved terminal, wire-size and crimp specifications, assembly sequence and current or voltage limits. These details are not published in the product table; do not use material or temperature alone as an electrical rating.
What material and temperature are listed?
The supplier lists Assembly and an operating temperature of -40℃~120℃. Confirm the material breakdown and test conditions for the assembled connector.
What finish or color information is available?
The plating field lists Ag. Request the plating thickness, contact specification and applicable corrosion test.
Request an automotive connector quote
For a quote on SJZ8235-180-M6, provide quantity, counterpart, application environment, destination and required documents. Confirm sample availability, packaging, payment terms and delivery date with Shenji.
- Exact model and expected quantity
- Application and mating reference
- Required documents and destination market
- Packaging and delivery confirmation
