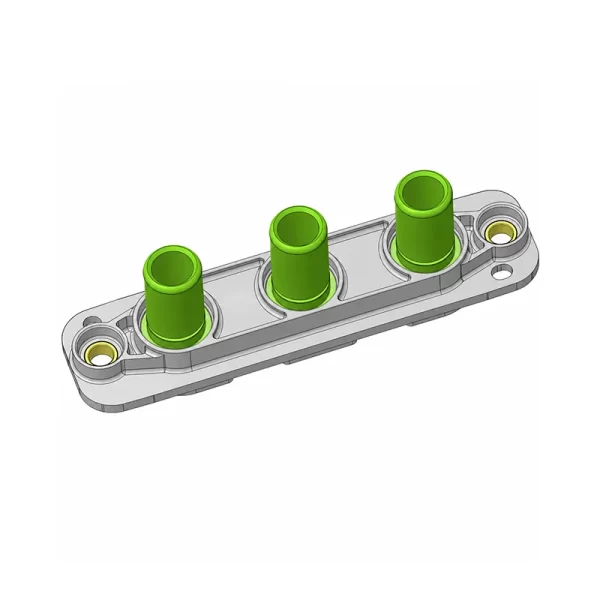

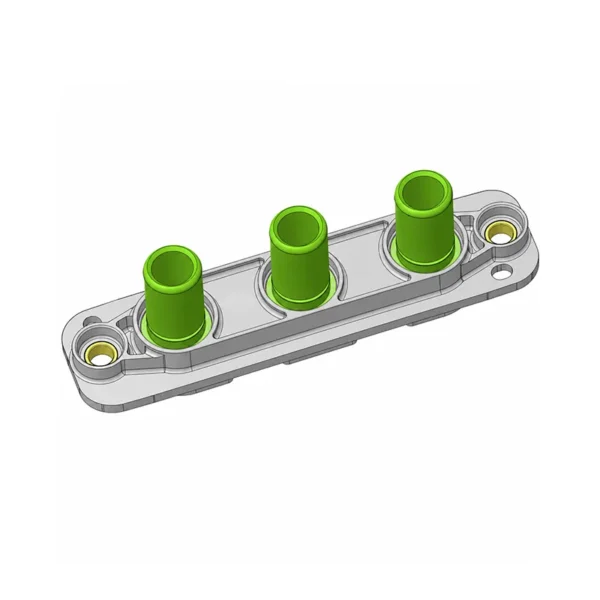

Unsealed automotive connector for vehicle wiring
4BK34-0321 is a supplier-listed unsealed automotive connector. The material designation is PA66+GF30.
Use the exact part number to request the drawing and check the intended mating connection before harness selection.
Automotive connector specifications and materials
Supplier-published specifications for 4BK34-0321. Confirm operating conditions for the complete assembly.
| Part number | 4BK34-0321 |
|---|---|
| Material | PA66+GF30 |
| Gender | Not specified; confirm |
| Sealing | Unsealed |
| Color | Black |
| Operating temperature | -40℃~120℃ |
| Stated application | Motorbike harness for Brand Cars |
| Dimensions | Drawings can be requested by email |
Choosing an unsealed automotive connector
Matching automotive connector pins
For 4BK34-0321, confirm contact positions, terminal layout, housing geometry and locking details against the intended counterpart. The table does not provide pin count, electrical ratings or a mating part number.
Checking connector mechanical loads
Confirm harness support and retention requirements for the expected installation loads.
Automotive connector drawings and mating details
Request the model drawing, terminal specification and assembly instructions. Check supplier background or compare other records without assuming interchangeability.
Unsealed connector selection and wiring FAQs
What type of automotive connector is 4BK34-0321?
The supplier lists 4BK34-0321 as an Unsealed auto connector. Confirm the intended counterpart and installation environment; the category name does not establish vehicle interchangeability.
What protection does an unsealed automotive connector need?
The supplier table identifies this model as Unsealed and does not establish a waterproof rating. Confirm the enclosure or installation protection required before exposure to water, dust or service fluids.
How do I identify the correct mating connector for 4BK34-0321?
Use the full part-number entry 4BK34-0321 to request the counterpart drawing. Confirm terminal positions, keying, housing geometry and locking details. The table does not publish a mating part number, so appearance or color alone does not establish compatibility.
Which wires and terminals should I use with this connector?
The table does not publish a supported wire range or terminal assembly procedure. Confirm conductor size, insulation diameter, terminal geometry and the installation protection needed for the harness.
What current and voltage ratings are published?
The parameter table does not publish rated current, rated voltage or a derating curve. Confirm circuit load, wire size, contact population and temperature-rise limits for the complete mating assembly before assigning an electrical rating.
Which materials and operating temperatures are listed?
The supplier lists PA66+GF30 and an operating range of -40℃~120℃. Confirm the component breakdown and complete-assembly test conditions; these entries do not establish an electrical-load rating.
Is a mechanical load limit specified?
The supplier lists PA66+GF30 but does not publish an axial-load or pull-out limit. Confirm harness support, retention geometry and the applicable mechanical test requirements.
Can this automotive connector be repinned instead of replaced?
A model-specific extraction or repinning procedure is not published in the table. Request approved service instructions, extraction tooling and replacement criteria. Confirm whether terminals, seals and retention parts may be reused before attempting a repair.
Request an automotive connector quote
For 4BK34-0321, send quantity, counterpart, application environment and required documents. Confirm sample availability, packaging, payment terms and delivery date with Shenji.
- Exact model and expected quantity
- Application and mating reference
- Required documents and destination market
- Packaging and delivery confirmation
